Jual NMRV wormgear reducer Gearbox motor



Spesifikasi NMRV wormgear reducer Gearbox motor

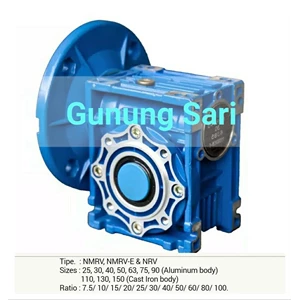

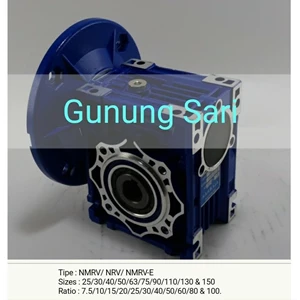

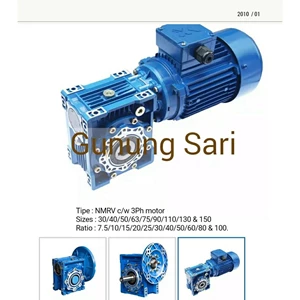

NMRV Wormgear reducer gearbox motor

Merek : HAHB and Motovario.

TIPE : NMRV/ NRV/ NMRV-E/ NMRV-NMRV Series

MODEL

 025, 030, 040, 050, 063, 075, 090 (Aluminum )

 110, 130 & 150 ( Cast Iron )

TORSI

 A wide range is available from 5 to 1,550 Nm.

FITUR

  • Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)

  • Ground worm profile ZI (UNI4760)

  • Casing Modular dgn universal mounting posisi

  • Cat RAL 5010 Blue expoxy-polyester powder coating

RATIO

  Single gear dgn ratio (5.0 s/d 100)

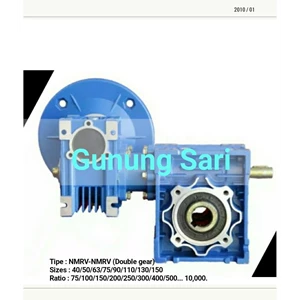

  Double gear dgn ratio(100 s/d 10,000)

Optional

 Torque arm, output flange, Input flange, output shaft kit & cover.

Untuk keterangan lebih lanjut, silahkan download PDF ini :
